Hello and welcome back to my series on Dynamic Type.

In my last article we’ve talked about scaling custom fonts with Dynamic Type. We’ve seen why it’s important to support it in our apps and that it impacts a lot of people (29% of them in the Immoweb iOS app).

Here we’ll try to follow this guideline from Apple:

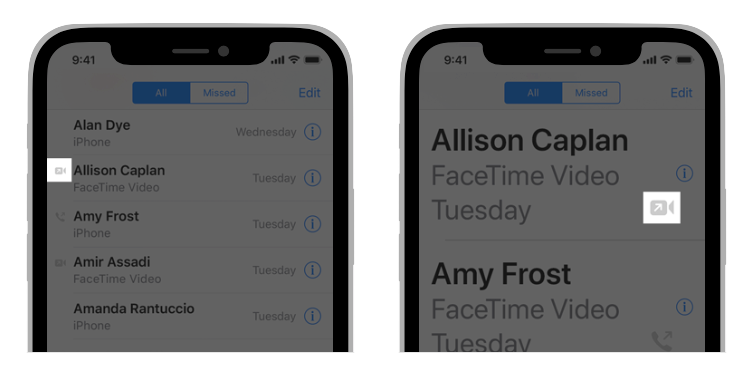

Increase the size of meaningful glyphs as font size increases. If you use glyphs to communicate important information, make sure the glyphs are easy to view at larger font sizes, too.

Let’s see how we can do that…

Allow images to scale

PDF assets

Always use PDF vectorial assets. It will make your life easier for scaling them (not mentioning supporting potential new screen resolutions). Anyway, who’s still using bitmap images these days? 🤗

Preserve vector data

By default, when the Asset Catalog is compiled, all your PDF assets are rasterized.

To avoid that, check the “Preserve vector data” box. That way, they will always displayed smoothly no matter the size of your UIImageView, UIButton or NSTextAttachment.

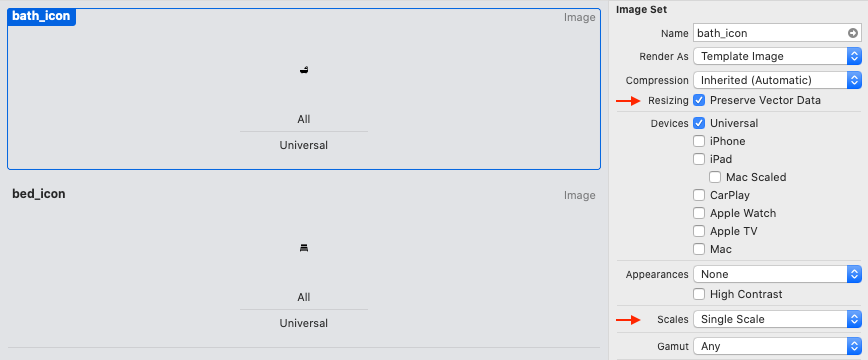

Example of an asset configuration with “Preserve Vector Data” checked.
Example of an asset configuration with “Preserve Vector Data” checked

Adjusts Image Size

Now when we use this image in a UIImageView for example, we just need to check the “Adjusts Image Size” box in the .xib file.

Screenshot of the “Adjusts Image Size” checkbox in .xib file Inspector panel.
.xib file Inspector panel

Or we can do the same in code:

imageView.adjustsImageSizeForAccessibilityContentSizeCategory = true

And voilà! 👏

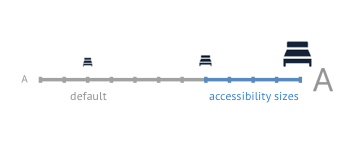

Our image will be scaled automatically according to the Dynamic Type Size (actually, only for the 5 biggest sizes which are considered as accessibility sizes).

Example of an image scaled according to Dynamic Type Size.
Example of an image scaled according to Dynamic Type Size

Scaled value

There are cases where you want a specific size for an image or a custom component.

Here’s an example:

A custom loader in the shape of a circle with a line stroke of 2 points and a size of 75 points.
Custom loader

A custom loader that we use inside buttons in the Immoweb app.
We want the circle size and width to scale according to the Dynamic Type Size. The result should look like this:

Loader in small and big Dynamic Type
Loader in small and big Dynamic Type

We have managed to do this via the API:

UIFontMetrics.default.scaledValue(for: <CGFloat>)

As for our loader, we use:

loader.lineWidth = UIFontMetrics.default.scaledValue(for: 2)
loader.size = UIFontMetrics.default.scaledValue(for: 75)

We can also make sure the loader is still visible at the smallest Dynamic Type Sizes by setting a min width of 2 points:

loader.lineWidth = max(2, UIFontMetrics.default.scaledValue(for: 2))

We’ll see in a future article how to adapt our layouts based on the Dynamic Type Size.

Thank you for reading. I hope you liked it!

See you soon for more on Dynamic Type 👋


Special thanks to Vincent Martin for proofreading this article 🙏
